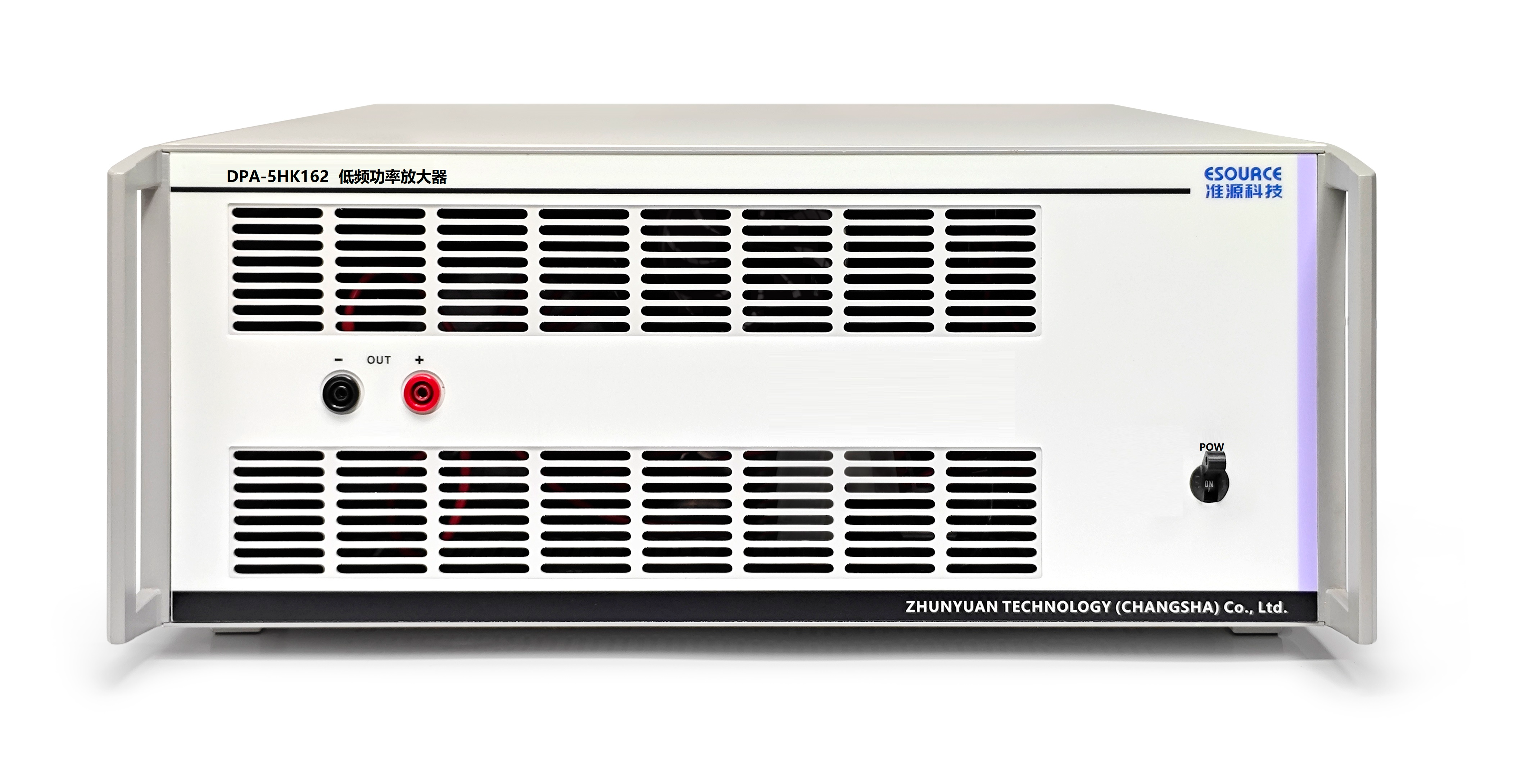

Low Frequency Power Amplifier

The DPA series is a power amplifier product operating from DC to 500kHz, with optional output power ranging from 100W to 1600W. Designed based on the industry's most advanced GaN technology, it delivers highly efficient and reliable power output, and is mainly applied in fields such as test and measurement instruments, communication or interference testing, and aerospace control. The product is equipped with functions including temperature and current detection, as well as alarm protection.

Low Frequency Power Amplifier

Features

Features
  1. Output frequency: DC~500kHz, higher frequencies are available for customization
  2. High-stability power output
  3. Maximum output power over 1600W
  4. Low ripple and noise
  1. High-voltage and high-current versions are customizable
  2. RS485 program control interface, supporting remote control
  3. Compact overall size and light weight, less than 25KG

Technical Specifications

Technical Specifications
No.ItemDescription
1 Operating Frequency DC~500kHz
2 Output Power 1600W
3 Voltage Amplification Factor 50
4 Gain Flatness 3dB
5 Input Impedance >1kΩ @BNC
6 Output Impedance 1Ω
7 Output Current 0~40A
8 Output Voltage 0~60VDC, 0~42VAC
9 Output Interface 6mm Banana Plug
10 Power Supply 220V/10A
11 Operating Environment Temperature: -40~60℃, Humidity: 0%~70%
12 Dimensions 480x180x550mm
13 Weight <20kg
